Keystone Hot Spot Kit

Product Description

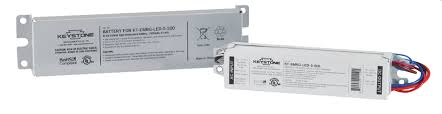

Keystone Technologies LED Emergency Back-Up Driver Kit

Model: KT-EMRG-LED-5C-500-K1-IP

Specifications:

Type: Back-Up Driver Kit

Application: Constant Power LED Emergency

Dimensions: 6.46" (L) x 1.37" (W) x 1" (H)

Mounting Size: 6"

Electrical & Performance:

Input Voltage: 120-277V AC

Output Voltage: 20-60V DC

Power Rating: 5W

Luminous Output: 500 Lumens

Output Current:

250mA @ 20V DC

86mA @ 58V DC

Frequency: 50/60 Hz

Power Factor: 0.5 (120-277V AC)

Battery & Charging:

Battery Type: High-Temperature, Maintenance-Free LiFePO4 (Lithium Iron Phosphate)

Battery Voltage: 9.6V DC (3-cell)

Battery Charging Current: 307mA

Environmental & Protection:

Operating Temperature: 32°F - 131°F

Enclosure Rating: IP20 (Indoor Use)

Application: Dry & Damp Locations

Features & Benefits:

Compatible with a variety of LED fixtures for emergency lighting solutions

Includes 2-in-1 Test Switch/Indicator Light

LED module automatically illuminates in emergency mode

Optimized for LED tube emergency applications

Certifications & Compliance:

UL 924 Listed

ANSI C63.4 Compliant

Manufacturer: Keystone Technologies
UNSPSC: 39112103

SIZE AND DIMENSIONS
