Steinel Ceiling Sensor

Product Description

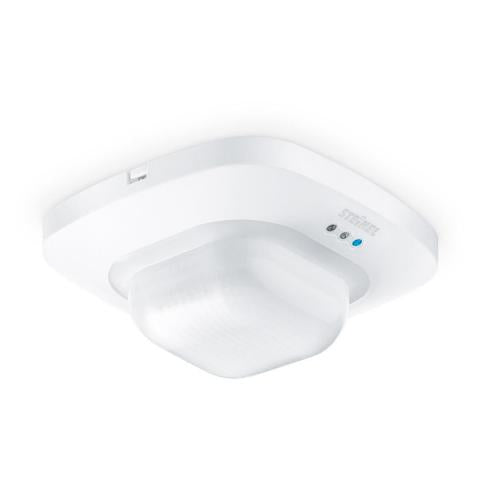

STEINEL Presence Detector

Sensor Type: Passive Infrared

Voltage Rating: 120/230/277V AC, 50/60Hz

Load Rating:

1/4 HP at 120V AC, 800W (Electronic Ballast/Tungsten)

1/4 HP at 230/277V AC, 1200W (Electronic Ballast)

Area Coverage:

225 sq. ft. at 9 ft. (Presence)

225 sq. ft. at 9 ft. (Radial)

529 sq. ft. at 9 ft. (Tangential)

Field of View: 360°

Time Delay: 30 sec to 30 min

Finish: White

Mounting: Ceiling Mount

Size: 4.72” (L) × 4.72” (W) × 3” (D)

Installation Height: 8 to 26 ft.

Driver Type: 0 to 10V Dimming

Enclosure Rating: IP20

Temperature Rating: 32°F to 104°F

Sensor Type: Single Infrared

Pyroelectric Detector

Part Number: 64440

UNSPSC: 39122200

Features & Benefits:

PIR presence detection with 1,760 switching zones

Mechanical reach setting for precise detection

Square coverage pattern

Remote commissioning and user controls

Manual ON mode (MAN) / Automatic mode (AUTO)

Momentary or maintained switch option

‘ON’ only / ‘ON’ and ‘OFF’ manual switching

Light level feature turns lights off when sufficient daylight is present

IQ Mode dynamically adjusts 'ON' time delay based on occupancy habits

SIZE AND DIMENSIONS
